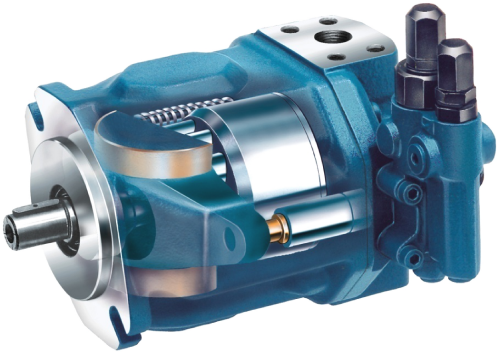

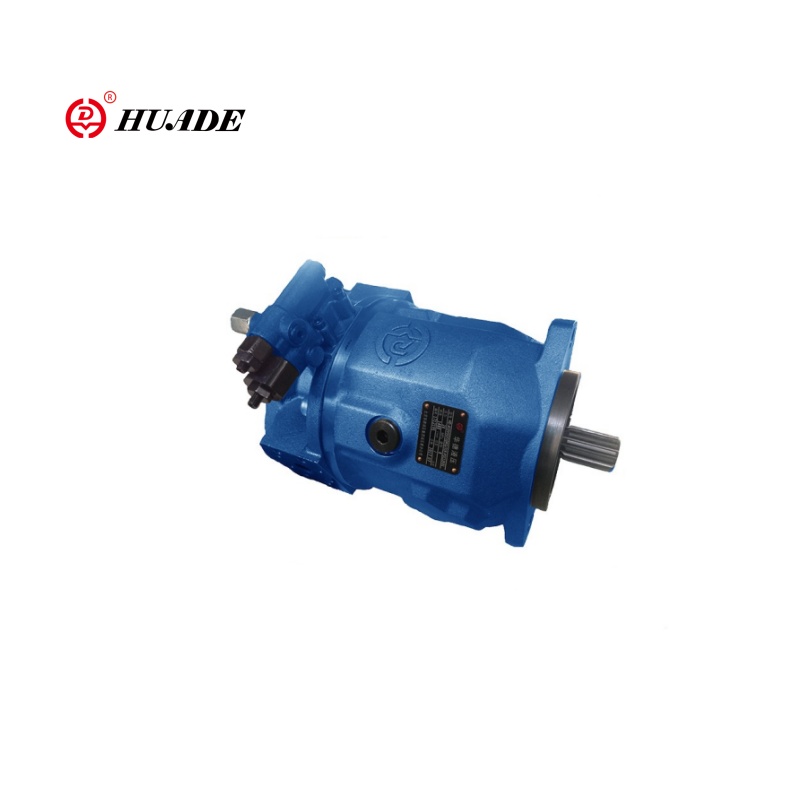

The open circuit axial piston variable pump A10VSO is a classic hydraulic component of Huade Hydraulic, which is widely used in industries, mobile machinery, etc. The pump adopts an open circuit design, so that the pump sucks oil from the oil tank, outputs pressure oil to drive the actuator, and the oil returns directly to the oil tank (in a closed circuit system, the oil returns to the suction port of the pump). Huade’s A10VSO pump is particularly suitable for scenarios that require dynamic response and energy efficiency optimization.
Product parameter of Axial Piston Variable Pump A10VSO
| Operating pressure range | |
| Pressure at service line port(pressure port) B: | |
| Nominal pressure Pnom | 250bar |
| Peak pressure Pmax | 315bar |
| Single operating period | 2.5ms |
| Total operating period | 300h |
| Minimum pressure(high-pressure side) | 10bar absolute |
| Rate of pressure change RAmax | 16000 bar/s |
| Pressure at suction port S (inlet) | |
| Minimum pressure Psmin | 0.8 bar absolute |
| Maximum pressure Psmax | 5 bar absolute |
Features:
▶Excellent suction characteristics
▶Permissible continuous operating pressure up to 28 MPa
▶Axial and radial load capacity of drive shaft
▶Short response time
▶The through drive is suitable for adding gear pumps and axial piston pumps up to the same size
▶Low noise and long service life
▶Favorable power-to-weight ratio
▶Versatile controller range

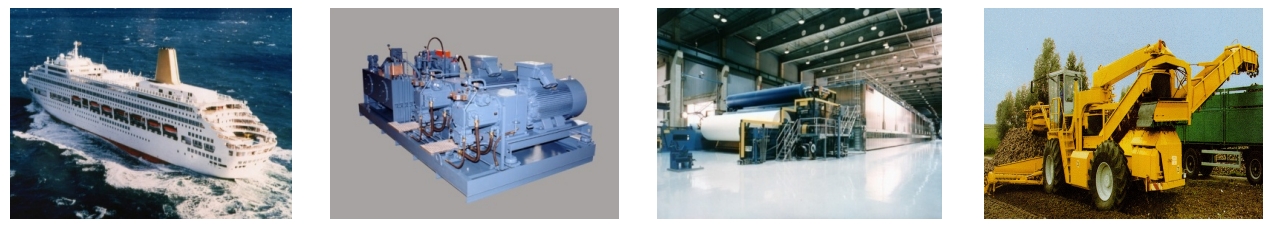

Application:
Axial piston variable pump A10VSO is widely used in the steel metallurgy and forging machine,engineering machinery and facility processing, the ships and water resources and hydropower hoist, the oil and petrochemical machinery.

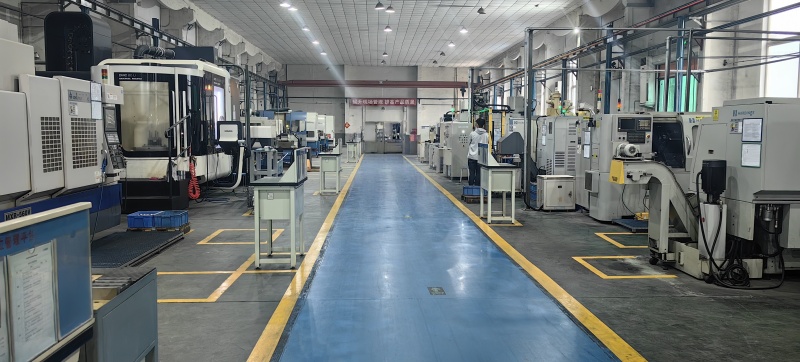

Workshop
Huade Hydraulic has more than 750 production equipment from all over the world, in order to provide customers with more high-quality hydraulic valves and pumps.
